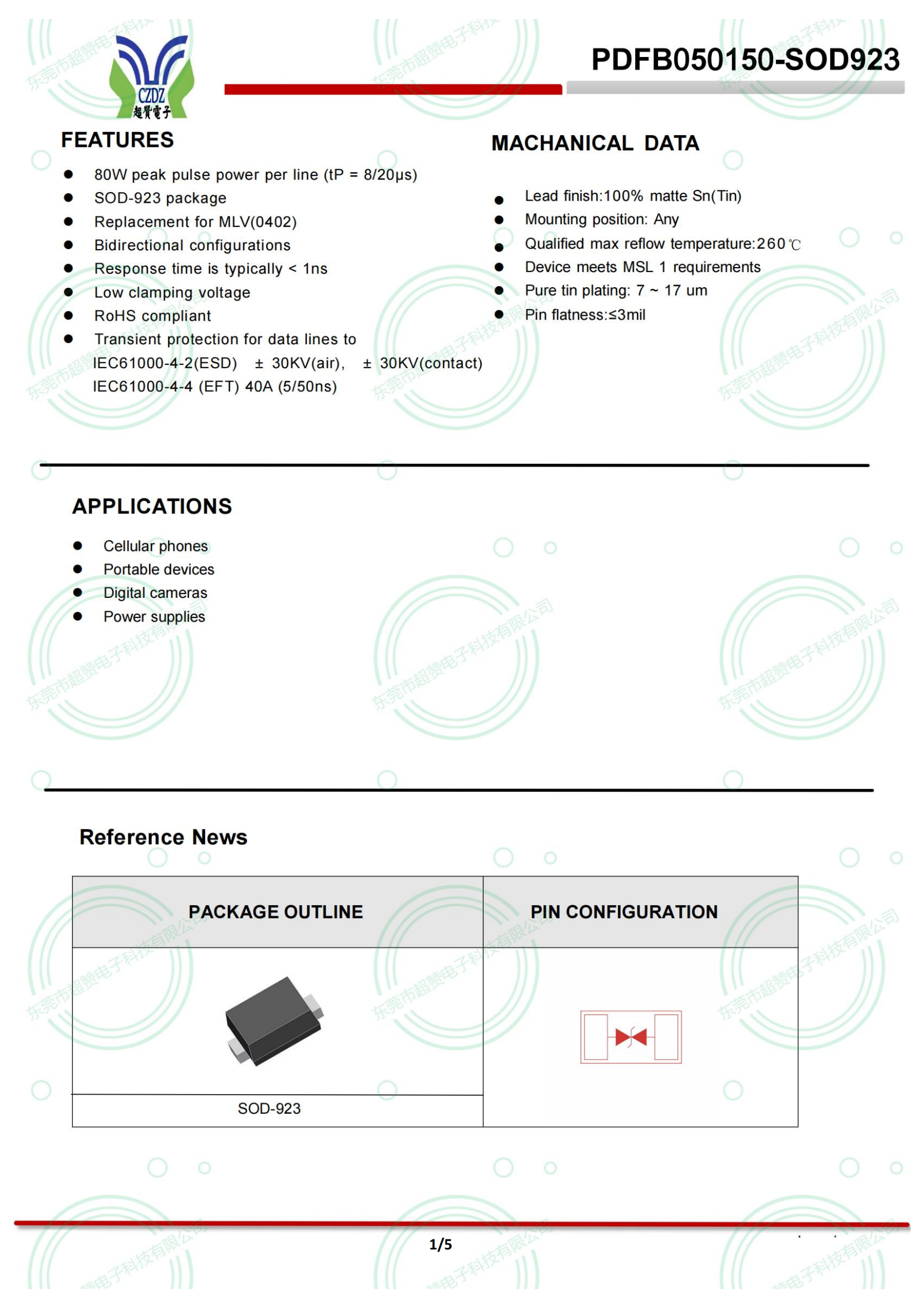

?80W peak pulse power per line (tP = 8/20μs)

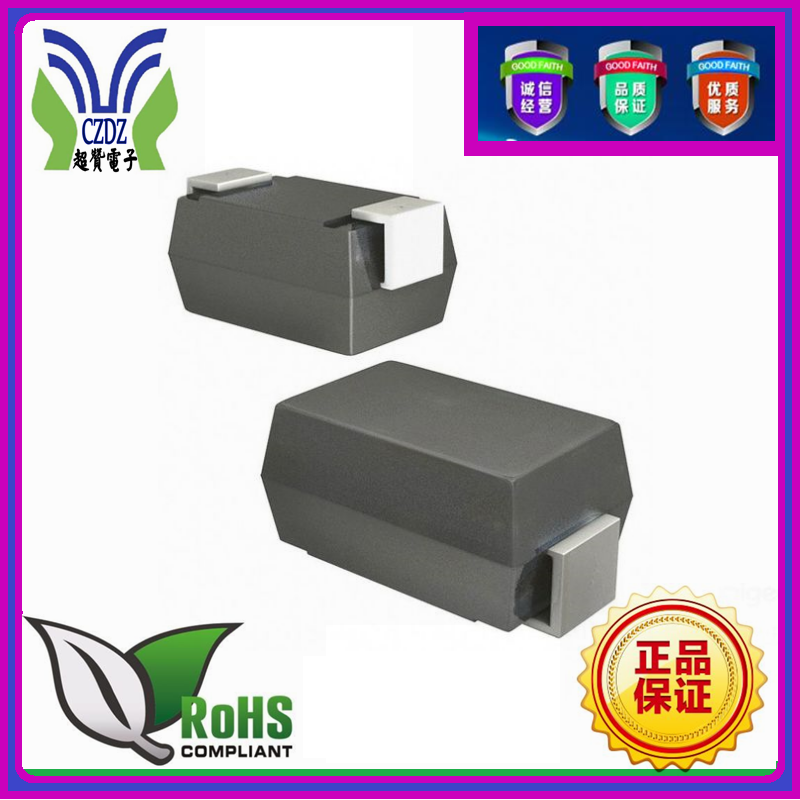

? SOD-923 package
? Replacement for MLV(0402)
? Bidirectional configurations
? Response time is typically < 1ns
? Low clamping voltage
? RoHS compliant
?Transient protection for data lines to
IEC61000-4-2(ESD) ± 30KV(air), ± 30KV(contact);
IEC61000-4-4 (EFT) 40A (5/50ns)
