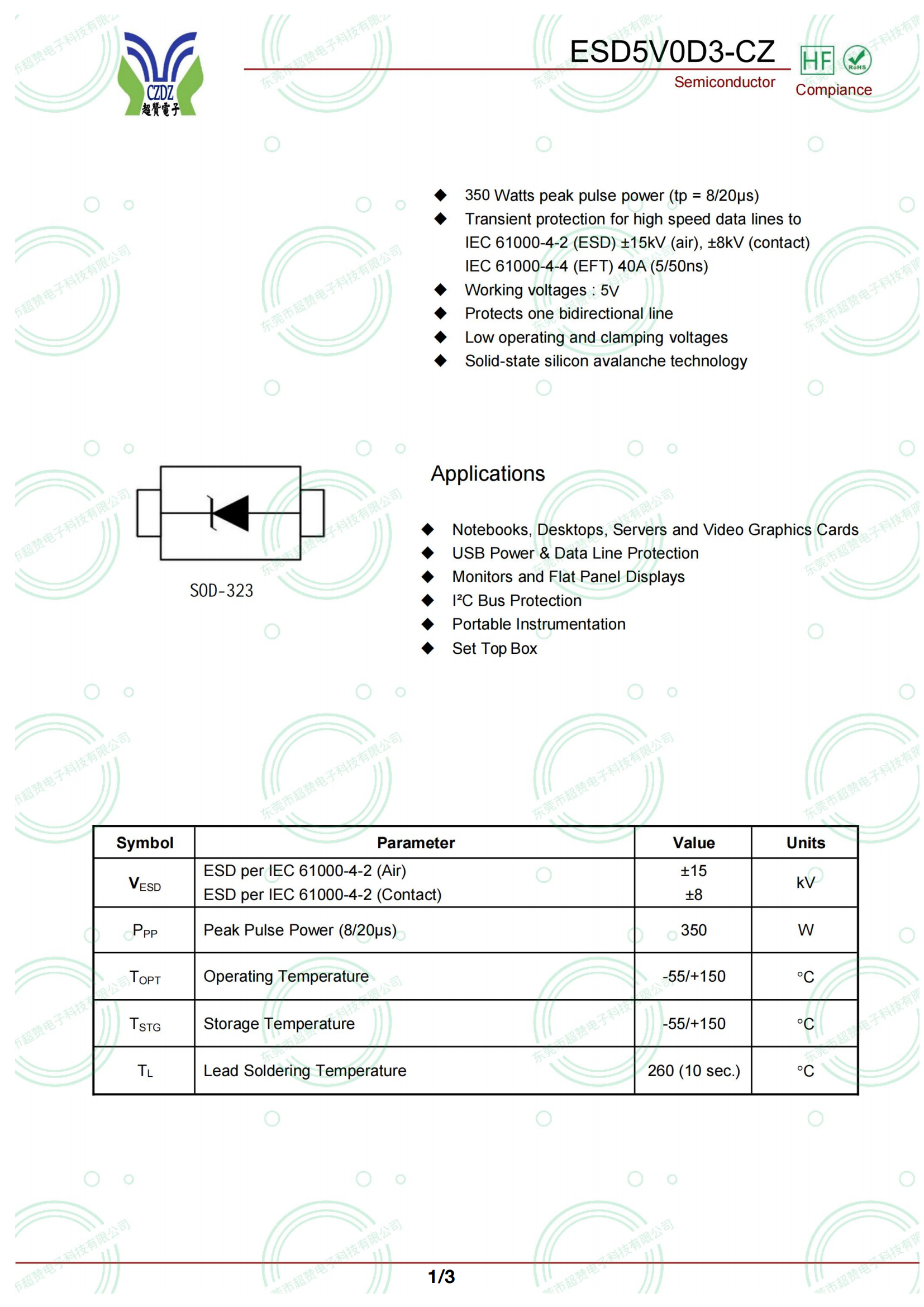

?350 Watts peak pulse power (tp = 8/20μs)
?Transient protection for high speed data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
?Working voltages : 5V
?Protects one bidirectional line
? Low operating and clamping voltages
? Solid-state silicon avalanche technology
